Magnum Plus - Heavy Duty Lock Loop/Ground Anchor 16mm

More images - click to enlarge

•
•
•
•

Heavy duty security lock loop/ground anchor suitable for securing bicycles or motorcycles. The Magnum Plus ground anchor has been awarded the Sold Secure - Gold (for bicycles) (2019) with a maximum security rating of 10.

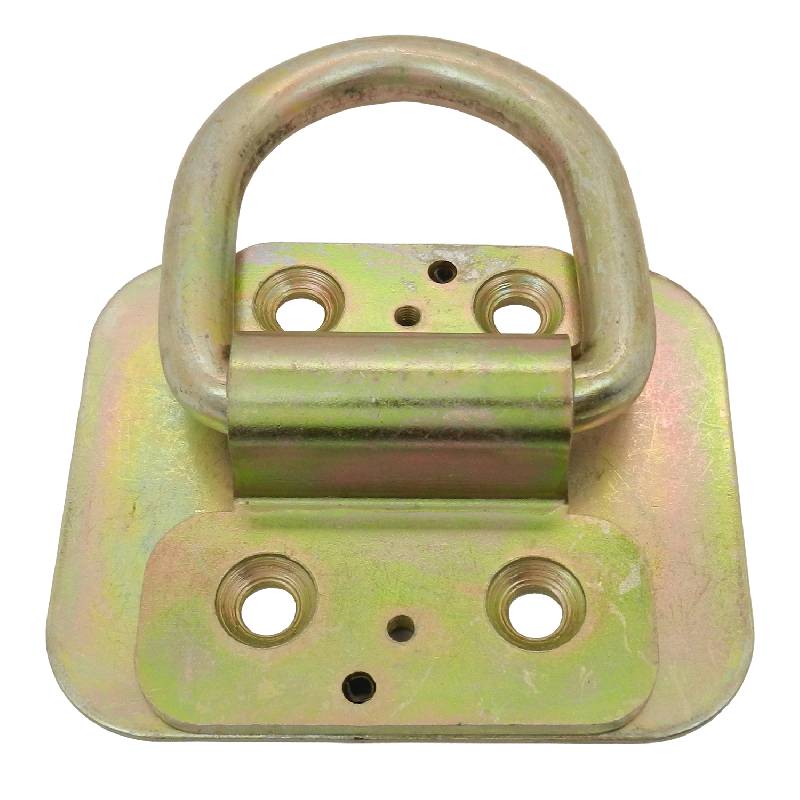

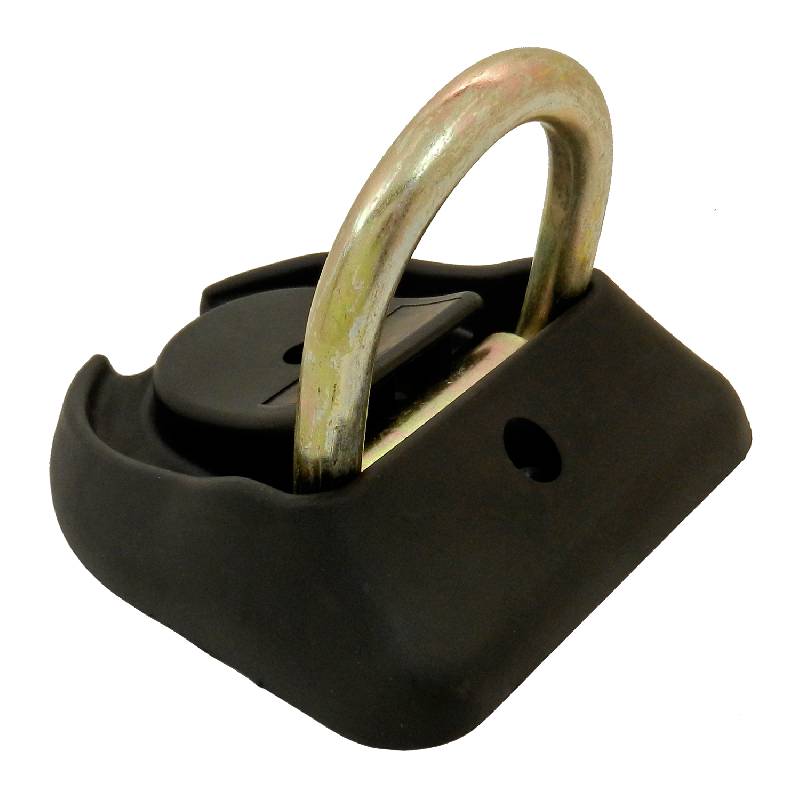

This product features a steel plate with 4 fixing holes (11mm) and a 16mm thick hardened steel shackle/loop. A strong durable hard plastic cover slips over the plate and is secured with 2 fixing bolts (supplied).

For extra security this ground anchor is supplied with 4 expanding bolts which are hex key driven and then a ball bearing can be hammered in to the slot to prevent them being removed.

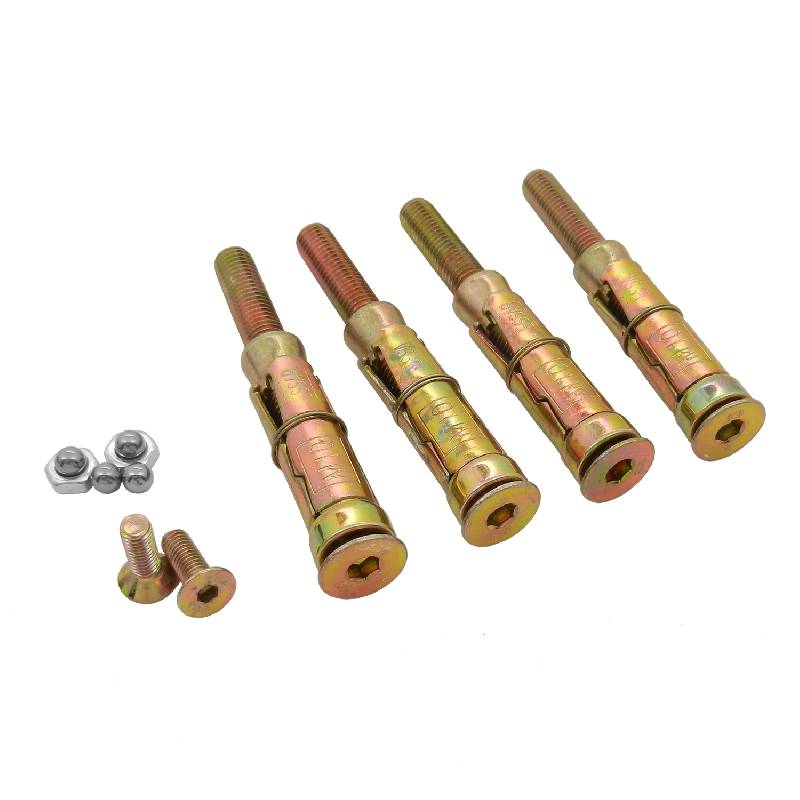

The Magnum Plus Ground Anchor is supplied with 4 M10 expanding bolts and 4 ball bearings and 2 screws for securing the cover.

Internal plate dimensions: Width: 146mm x Depth: 116mm (approx)

With Cover dimensions: width: 162mm x depth: 175mm (approx)

Overall height is approx 135mm

Please note: A minimum depth of 70mm of concrete is required, you will need a power drill, 6mm and 16mm masonry drip bits, hammer, 4mm and 6mm hex keys.
